W fenders

W fenders

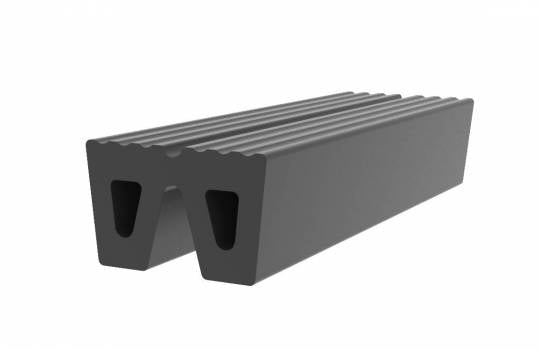

FenderTec produces a wide range of W fenders in the most common sizes. All sizes are kept in stock for fast delivery. Non-standard sizes can also be produced with short lead times.

  • Amplia gama de defensas
  • Defensas cortadas y perforadas
  • Diseños personalizados de defensas y soluciones
  • Producción y entrega rápidas
Ver todos los detalles

Catálogo de productos

En nuestra sección de descargas encontrarás nuestros últimos catálogos de defensas.

DESCARGAR CATÁLOGO
Product Name SKU A (mm) B (mm) C (mm) D (mm) Weight (kg/m) Max Length (mm)
M-fender 240x100mm M240100 240 100 25 20 14,3 1.500
M-fender 240x120mm M240120 240 120 35 13 20,0 1.000
M-fender 400x200mm M400200 400 200 40 23 56,0 2.200
M-fender 500x250mm M500250 500 250 50 27 89,0 2.200
M-fender 600x300mm M600300 600 300 60 33 132,0 2.100
M-fender 800x400mm M800400 800 400 80 44 235,0 1.550

Preguntas sobre el producto

Si tienes preguntas o dudas sobre el producto, no dudes en ponerte en contacto con nuestro equipo de expertos.

CONTÁCTANOS

W fenders information:

W fenders are designed for use in extreme conditions and to absorb excessive bumps and knocks. This type of fender is very suitable for application on the bow and stern of tugs, workboats and icebreakers. The grooves on the top of the fender provide extra grip and low pressure while pushing. With two flexible legs also allow for easy installation of the W fender with a large or small radius by means of guide rods W fenders are made from extremely durable rubber. Lengths are often no longer than 2000 mm and they are produced by means of compression-moulding.

The most common dimensions are kept in stock and can therefore be delivered at short notice. W fenders, M fenders and keyhole fenders are not interchangeable. W fenders are relatively easy to install. Attachment is often done with the help of fixing pins through the two standard holes. W fenders are available in various lengths and they can be cut at an angle. If the fenders are longer than one meter an opening for a support strip can be added.
