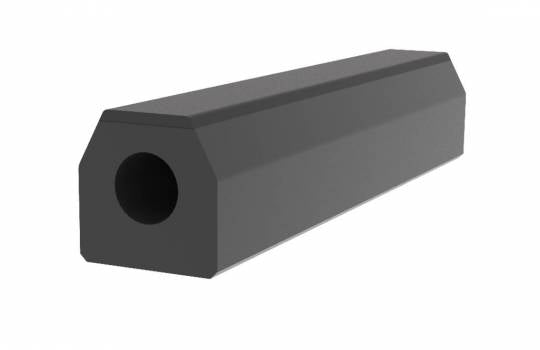

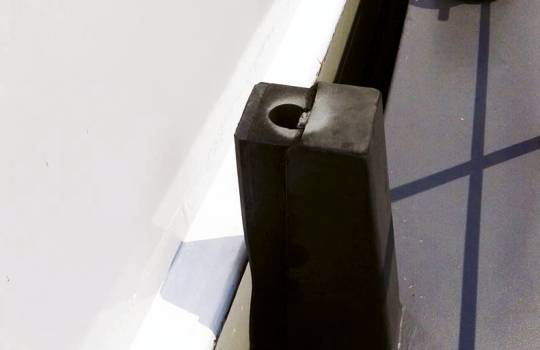

Trapezium composite fender consist of a rubber profile with a wear resistant UHMW-PE coating with a low coefficient of friction. The two materials are connected to each other by means of vulcanisation to form a permanent connection. The rubber profile absorbs energy while the UHMW-PE coating provides low friction and appropriate sliding properties. Composite fenders are suitable for the protection of various types of ships and quays, especially where a bumper is required with a wear-resistant surface with low friction properties.
Catálogo de productos
En nuestra sección de descargas encontrarás nuestros últimos catálogos de defensas.

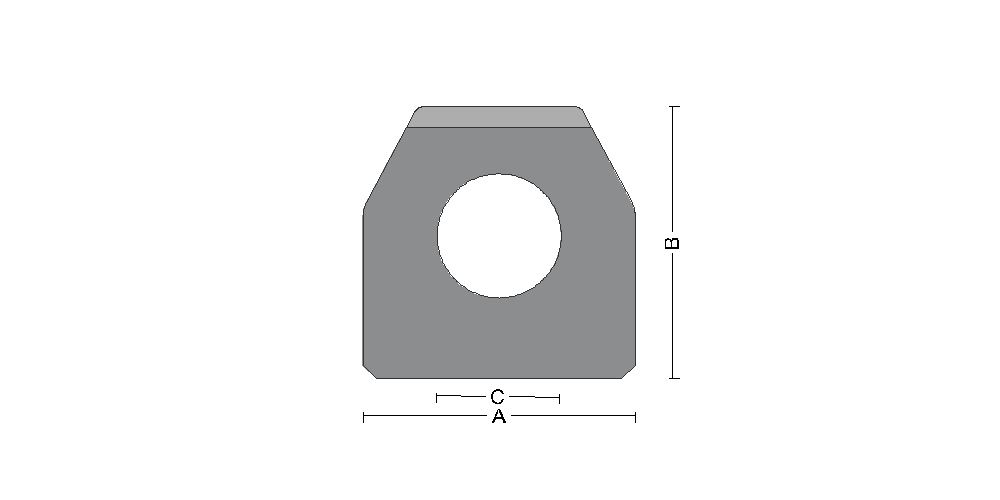

| Product Name | SKU | A (mm) | B (mm) | C (mm) | Weight (kg/m) | Max Length (mm) | Top (mm) | UHMW-PE |
|---|---|---|---|---|---|---|---|---|
| CF-C trap. Composite fender 080x080mm o-bore 42mm | CFC080080 | 80 | 80 | 42 | 5,4 | 2.000 | 10 | 10 |
| CF-C trap. Composite fender 100x100mm o-bore 45mm | CFC100100 | 100 | 100 | 45 | 8,4 | 2.000 | 10 | 10 |
| CF-C trap. Composite fender 120x120mm o-bore 62mm | CFC120120 | 120 | 120 | 62 | 12,2 | 3.000 | 12 | 12 |
| CF-C trap. Composite fender 150x150mm o-bore 73mm | CFC150150 | 150 | 150 | 73 | 24,8 | 3.000 | 15 | 15 |
| CF-D trap. Composite fender 080x080mm | CFD080080 | 80 | 80 | 7,0 | 2.000 | 10 | 10 | |
| CF-D trap. Composite fender 100x100mm | CFD100100 | 100 | 100 | 11,0 | 2.000 | 10 | 10 | |
| CF-D trap. Composite fender 120x120mm | CFD120120 | 120 | 120 | 15,8 | 3.000 | 12 | 12 | |
| CF-D trap. Composite fender 150x150mm | CFD150150 | 150 | 150 | 24,8 | 3.000 | 15 | 15 |
Preguntas sobre el producto
Si tienes preguntas o dudas sobre el producto, no dudes en ponerte en contacto con nuestro equipo de expertos.
Trapezium composite fenders information:
