Rubber SC-Fenders

Rubber SC-Fenders

FenderTec produces a wide range of Rubber SC-Fenders in the most common sizes. All sizes are kept in stock for fast delivery. Non-standard sizes can also be produced with short lead times.

  • Amplia gama de defensas
  • Defensas cortadas y perforadas
  • Diseños personalizados de defensas y soluciones
  • Producción y entrega rápidas
Ver todos los detalles

Catálogo de productos

En nuestra sección de descargas encontrarás nuestros últimos catálogos de defensas.

DESCARGAR CATÁLOGO

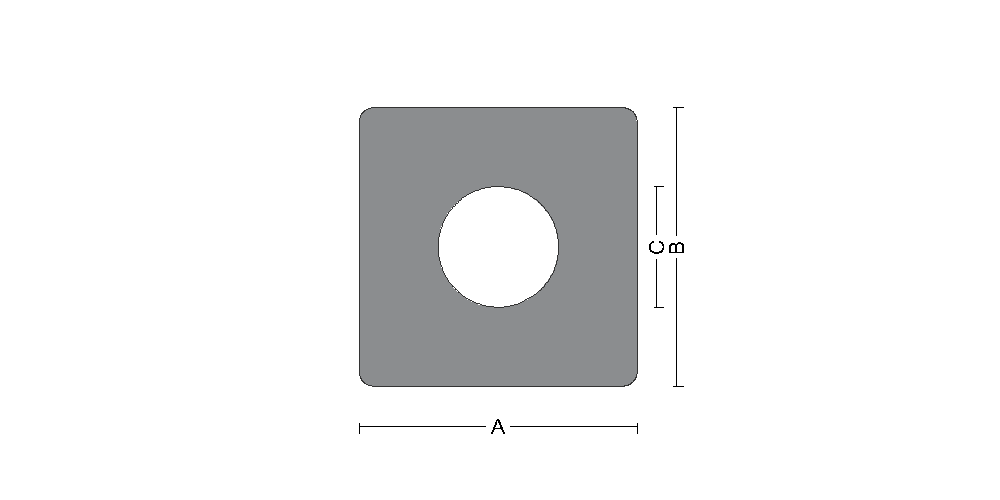

Product Name SKU A (mm) B (mm) C (mm) D (mm) Weight (kg/m) Max Length (mm)
SC-fender 100x100mm o-bore 050 SC100100 100 100 50 15 10,1 6.000
SC-fender 150x150mm o-bore 065 SC150150 150 150 65 20 23,6 6.000
SC-fender 200x200mm o-bore 075 SC200200 200 200 75 25 43,8 6.000
SC-fender 200x200mm o-bore 100 SC200200100 200 200 100 25 39,5 6.000
SC-fender 250x200mm o-bore 100 SC250200 250 200 100 30 52,0 6.000
SC-fender 250x250mm o-bore 100 SC250250 250 250 100 30 67,2 6.000
SC-fender 300x250mm o-bore 100 SC300250 300 250 100 30 82,6 6.000
SC-fender 300x300mm o-bore 125 SC300300 300 300 150 30 93,0 6.000
SC-fender 350x350mm o-bore 175 SC350350 350 350 175 35 121,0 6.000
SC-fender 400x400mm o-bore 200 SC400400 400 400 200 35 158,0 6.000
SC-fender 500x500mm o-bore 250 SC500500 500 500 250 45 247,0 6.000

Preguntas sobre el producto

Si tienes preguntas o dudas sobre el producto, no dudes en ponerte en contacto con nuestro equipo de expertos.

CONTÁCTANOS

Rubber SC-Fenders information:

Square fenders are produced in various designs and sizes and they can be used for a wide range of purposes. The production takes place by means of extrusion. When compared to D- fenders, square fenders are used when a more rigid and stronger bumper is required for use in more severe conditions.FenderTec produces square fenders in a standard range and most common sizes are kept in stock and can be delivered at short notice. Customer specific sizes and designs can also be produced with short lead times. Square fenders with a smaller dimension can be produced in very long lengths and in other colours (non-marking).

Square fenders can be mounted in several ways by means of bolts and/or strips. The mounting holes required are made through the side or through the top and bottom of the fender. The fenders are finished in accordance with your requirements and drawings. Square fenders can also be produced vulcanised in a specific radius to ensure that it fits properly around a bow or stern of a ship. Square fenders can be provided in specified lengths and the ends can be bevelled.
