Pneumatic fenders sling

Pneumatic fenders sling

FenderTec produces a wide range of Pneumatic fenders sling in the most common sizes. All sizes are kept in stock for fast delivery. Non-standard sizes can also be produced with short lead times.

  • Amplia gama de defensas
  • Defensas cortadas y perforadas
  • Diseños personalizados de defensas y soluciones
  • Producción y entrega rápidas
Ver todos los detalles

Catálogo de productos

En nuestra sección de descargas encontrarás nuestros últimos catálogos de defensas.

DESCARGAR CATÁLOGO

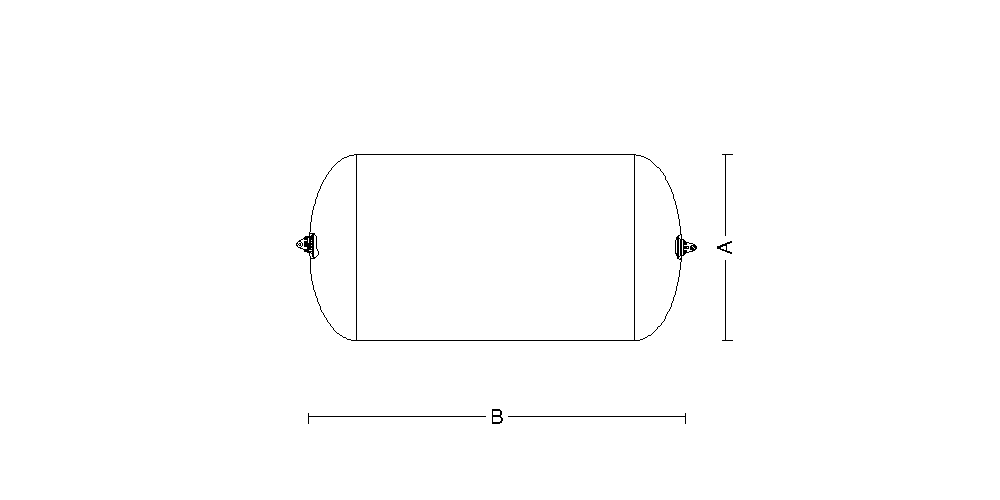

Product Name SKU Diameter (mm) Length B (mm) Initial Internal Pressure (kPa) Energy Absorption at 60% Compression (kN/m) Reaction Force at 60% Compression (kN/m)
Pneumatic Fender 500x1000mm - 50 Kpa - sling type 7005001000-S50 500 1000 50 6 64
Pneumatic Fender 1000x1500mm - 50 Kpa - sling type 7010001500-S50 1000 1500 50 32 182
Pneumatic Fender 1000x2000mm - 50 Kpa - sling type 7010002000-S50 1000 2000 50 45 257
Pneumatic Fender 1200x2000mm - 50 Kpa - sling type 7012002000-S50 1200 2000 50 63 297
Pneumatic Fender 1500x3000mm - 50 Kpa - sling type 7015003000-S50 1500 3000 50 153 579
Pneumatic Fender 2000x3500mm - 50 Kpa - sling type 7020003500-S50 2000 3500 50 308 875
Pneumatic Fender 2500x4000mm - 50 Kpa - sling type 7025004000-S50 2500 4000 50 663 1381
Pneumatic Fender 2500x5500mm - 50 Kpa - sling type 7025005500-S50 2500 5500 50 943 2019
Pneumatic Fender 3300x6500mm - 50 Kpa - sling type 7033006500-S50 3300 6500 50 1814 3015

Preguntas sobre el producto

Si tienes preguntas o dudas sobre el producto, no dudes en ponerte en contacto con nuestro equipo de expertos.

CONTÁCTANOS

Pneumatic fenders sling information:

The Pneumatic fender sling is basically the same fender, but without the “netting”. The sling type Pneumatic fenders have a special outer rubber double-layered cover, which consists of a single cover and an extra tyre cord layer, resulting in better resistance to operational damages. At each end of the sling type fender, a flange with shackle and swivel is mounted to which a chain or cable can be attached.

All Pneumatic sling type fenders come – and are on stock – with an internal pressure of 0.5 Bar. All dimensions can be produced and supplied with 0.8 internal pressure.
