Pneumatic fenders ribbed

Pneumatic fenders ribbed

FenderTec produces a wide range of Pneumatic fenders ribbed in the most common sizes. All sizes are kept in stock for fast delivery. Non-standard sizes can also be produced with short lead times.

  • Amplia gama de defensas
  • Defensas cortadas y perforadas
  • Diseños personalizados de defensas y soluciones
  • Producción y entrega rápidas
Ver todos los detalles

Catálogo de productos

En nuestra sección de descargas encontrarás nuestros últimos catálogos de defensas.

DESCARGAR CATÁLOGO

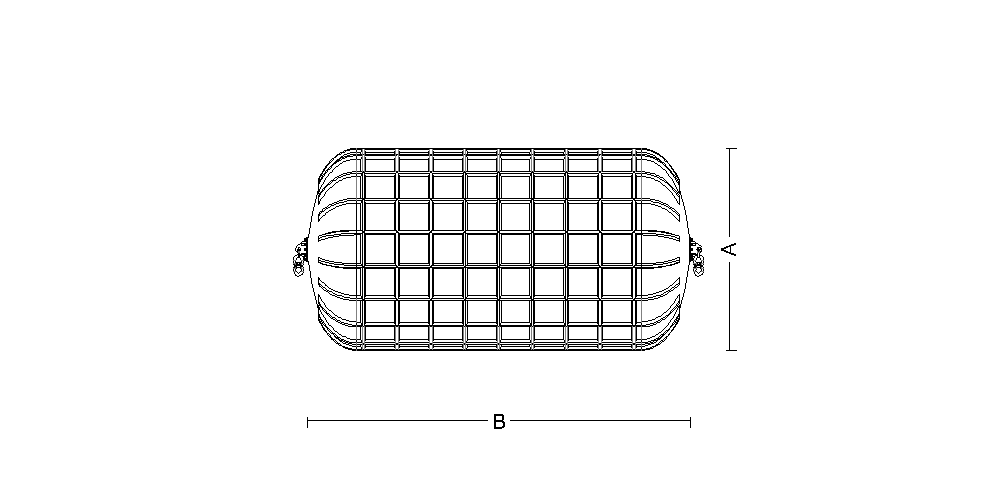

Product Name SKU Diameter (mm) Length B (mm) Initial Internal Pressure (kPa) Diameter incl. Ribs (mm) Length incl. Ribs (mm) Energy Absorption at 60% Compression (kN/m) Reaction Force at 60% Compression (kN/m)
Pneumatic Fender 500x1000 - 50Kpa - ribbed 7005001000-R50 500 1000 50 630 1000 6 64
Pneumatic Fender 1000x1500 - 50Kpa - ribbed 7010001500-R50 1000 1500 50 1130 1500 32 182
Pneumatic Fender 1000x2000 - 50Kpa - ribbed 7010002000-R50 1000 2000 50 1130 2000 45 257
Pneumatic Fender 1200x2000 - 50Kpa - ribbed 7012002000-R50 1200 2000 50 1330 2000 63 297
Pneumatic Fender 1500x3000 - 50Kpa - ribbed 7015003000-R50 1500 3000 50 1630 3000 153 579
Pneumatic Fender 2000x3500 - 50Kpa - ribbed 7020003500-R50 2000 3500 50 2130 3500 308 875

Preguntas sobre el producto

Si tienes preguntas o dudas sobre el producto, no dudes en ponerte en contacto con nuestro equipo de expertos.

CONTÁCTANOS

Pneumatic fenders ribbed information:

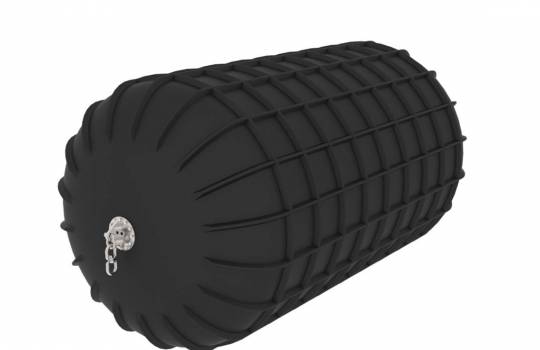

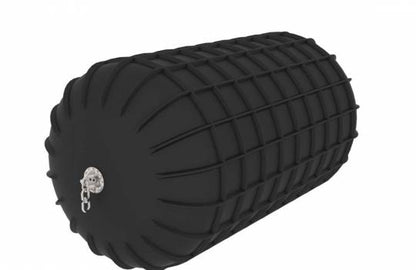

The Pneumatic ribbed fender is a lighter and less bulky rubber protector than the standard fender with tire net. The ribbed type has reinforcements as a sort of rib cage integrated into the Pneumatic fender. At each end of the ribbed type fender, a flange with shackle and swivel is mounted to which a chain or cable can be attached.

The Pneumatic ribbed fender will be a superb alternative when weight and flexibility in use are the main objectives. Our Pneumatic ribbed fender is made of high European quality rubber and has been ISO approved. Discover the features for the Pneumatic ribbed fender below, as well as more information on the ISO approval. Our office is located near the port of Rotterdam in the Netherlands. We ensure fast worldwide shipping.
