Keyhole fenders flat face

Keyhole fenders flat face

FenderTec produces a wide range of Keyhole fenders flat face in the most common sizes. All sizes are kept in stock for fast delivery. Non-standard sizes can also be produced with short lead times.

  • Amplia gama de defensas
  • Defensas cortadas y perforadas
  • Diseños personalizados de defensas y soluciones
  • Producción y entrega rápidas
Ver todos los detalles

Catálogo de productos

En nuestra sección de descargas encontrarás nuestros últimos catálogos de defensas.

DESCARGAR CATÁLOGO

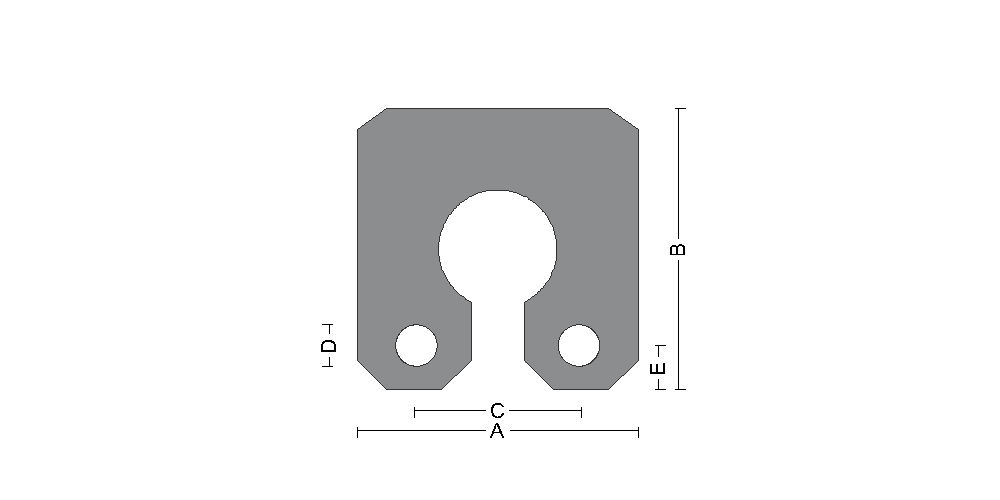

Product Name SKU A (mm) B (mm) C (mm) D (mm) Weight (kg/m) Max Length (mm)
Keyhole fender block flat face 200x200mm KEYBF200200 200 200 130 28 7,0 200
Keyhole fender block flat face 250x250mm KEYBF250250 250 250 150 33 13,0 250
Keyhole fender block flat face 300x300mm KEYBF300300 300 300 180 33 24,0 300
Keyhole fender block flat face 350x350mm KEYBF350350 350 350 210 33 40,0 350
Keyhole fender flat face 100x100mm KEYF100100 100 100 70 16 8,0 2.000
Keyhole fender flat face 200x200mm KEYF200200 200 200 130 28 33,0 2.000
Keyhole fender flat face 250x250mm KEYF250250 250 250 150 33 54,0 2.000
Keyhole fender flat face 300x300mm KEYF300300 300 300 180 33 80,0 2.000
Keyhole fender flat face 350x350mm KEYF350350 350 350 210 33 114,0 2.000

Preguntas sobre el producto

Si tienes preguntas o dudas sobre el producto, no dudes en ponerte en contacto con nuestro equipo de expertos.

CONTÁCTANOS

Keyhole fenders flat face information:

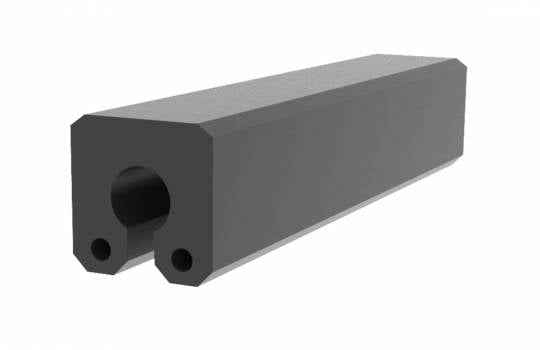

Keyhole fenders are used worldwide and they offer very reliable protection for the bow of a vessel or for the wall of a quay. This type of fender is characterised by the keyhole- shaped opening on the inside and it is used in areas where large forces must be absorbed. Keyhole fenders are strong and they can be produced with a curve.

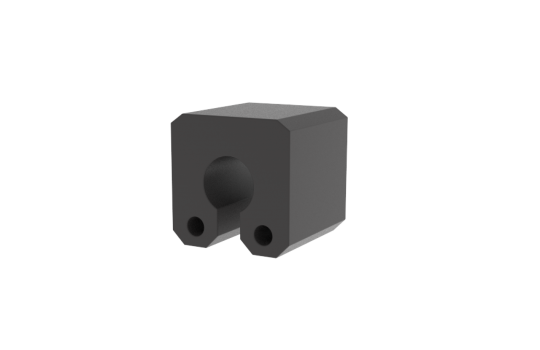

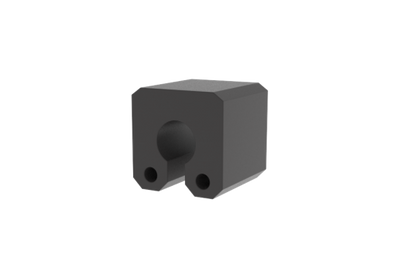

The two mounting holes facilitate easy and accurate installationStandard keyhole fenders are produced by length or as a block and they are made from highly wear-resistant rubber. Lengths are produced by means of extrusion and blocks by means of compression-moulding. Keyhole fenders are produced with a flat face or a grooved face, depending on the friction and/or grip required. As with the composition fender this type of fender can also be produced with an UHMW-PE surface layer. FenderTec keeps most standard sizes in stock for fast delivery. Custom sizes can also be supplied on request with short lead times. Keyhole fenders, W fenders and M fenders are not interchangeable.Keyhole fenders are relatively easy to install. In general they are mounted vertically with fixing pins through the two standard holes.

Keyhole fenders can be provided in specified lengths and the ends can be bevelled if required. If the fenders are longer than one meter an opening for a support strip can be added.
