Rubber Cylindrical fenders

Rubber Cylindrical fenders

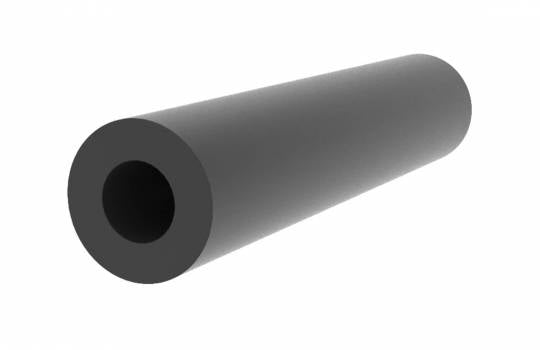

FenderTec produces a wide range of Rubber Cylindrical fenders in the most common sizes. All sizes are kept in stock for fast delivery. Non-standard sizes can also be produced with short lead times.

  • Amplia gama de defensas
  • Defensas cortadas y perforadas
  • Diseños personalizados de defensas y soluciones
  • Producción y entrega rápidas
Ver todos los detalles

Catálogo de productos

En nuestra sección de descargas encontrarás nuestros últimos catálogos de defensas.

DESCARGAR CATÁLOGO

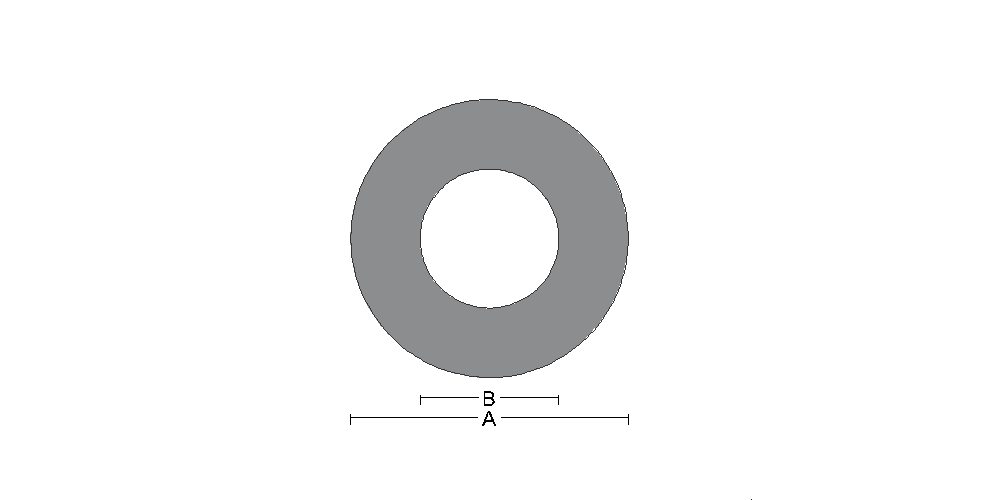

Product Name SKU A (mm) B (mm) Weight (kg/m) Max Length (mm)
Cylindrical fender 100x050mm CYL100050 100 50 7,2 6.000
Cylindrical fender 1000x500mm CYL1000500 1000 500 707,0 12.500
Cylindrical fender 1200x600mm CYL1200600 1200 600 1.018,0 8.000
Cylindrical fender 1400x700mm CYL1400700 1400 700 1.386,0 2.500
Cylindrical fender 1400x800mm CYL1400800 1400 800 1.245,0 2.400
Cylindrical fender 150x075mm CYL150075 150 75 16,3 6.000
Cylindrical fender 1500x750mm CYL1500750 1500 750 1.591,0 2.500
Cylindrical fender 1600x800mm CYL1600800 1600 800 1.810,0 2.400
Cylindrical fender 1800x900mm CYL1800900 1800 900 2.273,0 2.300
Cylindrical fender 2000x1000mm CYL20001000 2000 1000 2.414,0 2.200
Cylindrical fender 2000x1200mm CYL20001200 2000 1200 2.414,0 2.000
Cylindrical fender 200x100mm CYL200100 200 100 29,0 6.000
Cylindrical fender 250x125mm CYL250125 250 125 45,3 6.000
Cylindrical fender 300x150mm CYL300150 300 150 65,2 10.000
Cylindrical fender 380x190mm CYL380190 380 190 105,0 10.000
Cylindrical fender 400x200mm CYL400200 400 200 116,0 10.000
Cylindrical fender 450x225mm CYL450225 450 225 147,0 8.000
Cylindrical fender 500x250mm CYL500250 500 250 181,0 8.000
Cylindrical fender 600x300mm CYL600300 600 300 255,0 10.000
Cylindrical fender 800x400mm CYL800400 800 400 453,0 11.500
Cylindrical fender 900x450mm CYL900450 900 450 597,0 10.000

Preguntas sobre el producto

Si tienes preguntas o dudas sobre el producto, no dudes en ponerte en contacto con nuestro equipo de expertos.

CONTÁCTANOS

Rubber Cylindrical fenders information:

Cylindrical fenders on tugboats and workboats are often mounted on bow and stern mounted as the main push fenders. These fenders are often used on the bow in combination with Keyhole, M or W fenders. FenderTec produces this type of fender by means of a winding process up to a diameter of 1000 mm. If required they can be provided with tapered ends for better attachment to the ship and with grooves for additional attachment with chains or nylon straps. FenderTec produces cylindrical bow & stern fenders from a very durable rubber. Depending on the diameter of the fender unit lengths of up to 10 metres can be provided. Connection plugs can be used to make longer lengths. The maximum diameter of this type of fender is 1000 mm.

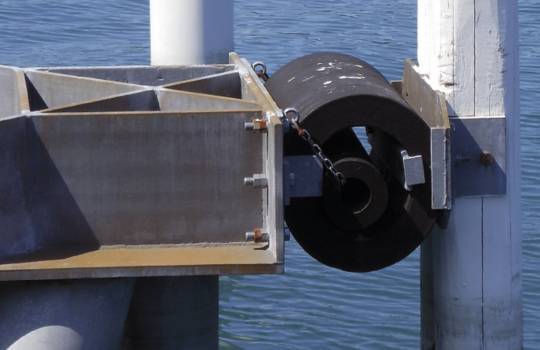

Most cylindrical bow & stern fenders can be customised according to customer specifications. Cylindrical bow & stern fenders with a diameter up to 500 mm are attached to a vessel by a chain through the round chamber. Fenders with a larger diameter are provided with grooves in the circumference of the fender for additional mounting options with the aid of nylon straps or cables.
