Cylindrical bow fenders

Cylindrical bow fenders

FenderTec produces a wide range of Cylindrical bow fenders in the most common sizes. All sizes are kept in stock for fast delivery. Non-standard sizes can also be produced with short lead times.

  • Amplia gama de defensas
  • Defensas cortadas y perforadas
  • Diseños personalizados de defensas y soluciones
  • Producción y entrega rápidas
Ver todos los detalles

Catálogo de productos

En nuestra sección de descargas encontrarás nuestros últimos catálogos de defensas.

DESCARGAR CATÁLOGO

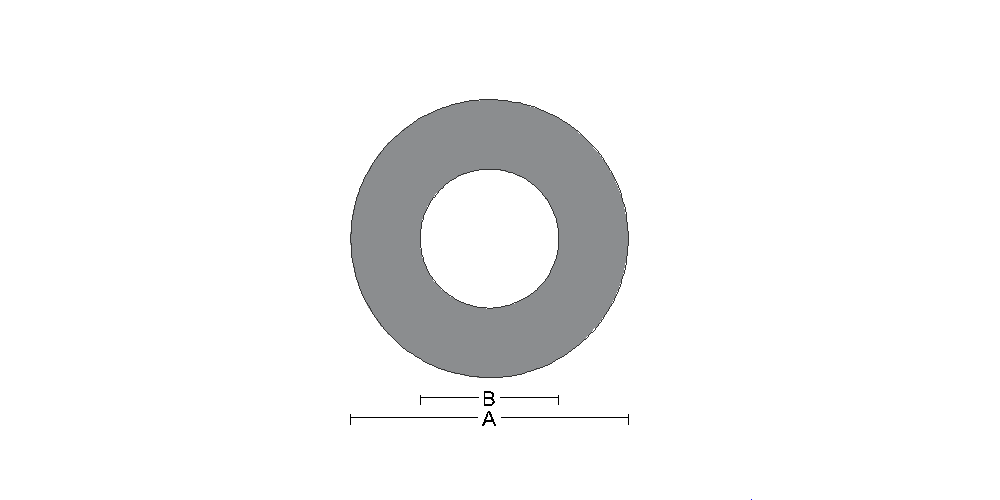

Product Name SKU A (mm) B (mm) C (mm) D (mm) Weight (kg/m) Max Length (mm)
Bow and Stern fender 0250x125mm BOW0250125 250 125 200 570 45,5 8.500
Bow and Stern fender 0300x150mm BOW0300150 300 150 225 600 65,2 8.500
Bow and Stern fender 0380x190mm BOW0380190 380 190 280 650 105,0 1.000
Bow and Stern fender 0400x200mm BOW0400200 400 200 300 670 116,0 1.000
Bow and Stern fender 0450x225mm BOW0450225 450 225 300 700 147,0 8.500
Bow and Stern fender 0500x250mm BOW0500250 500 250 300 730 181,0 8.400
Bow and Stern fender 0600x300mm BOW0600300 600 300 350 800 255,0 10.000
Bow and Stern fender 0800x400mm BOW0800400 800 400 350 930 453,0 11.700
Bow and Stern fender 0900x450mm BOW0900450 900 450 350 1.000 573,0 10.500
Bow and Stern fender 1000x500mm BOW1000500 1.000 500 350 1.060 707,0 12.500

Preguntas sobre el producto

Si tienes preguntas o dudas sobre el producto, no dudes en ponerte en contacto con nuestro equipo de expertos.

CONTÁCTANOS

Cylindrical bow fenders information:

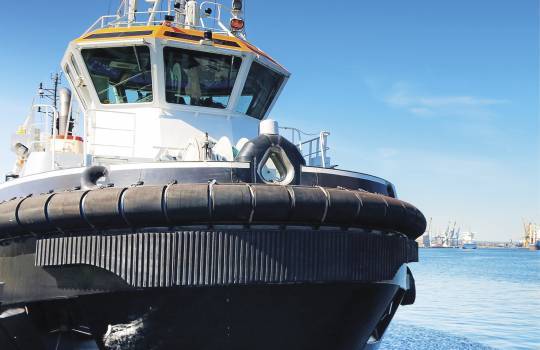

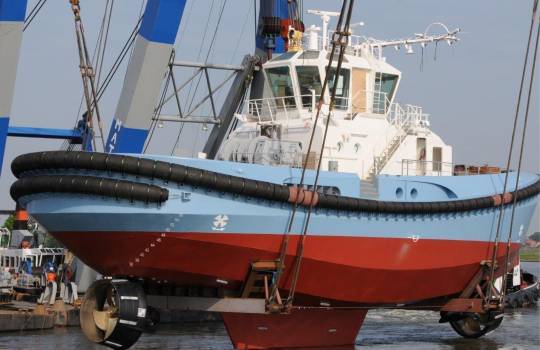

Cylindrical fenders on tugboats and workboats are often mounted on bow and stern mounted as the main push fenders. These fenders are often used on the bow in combination with Keyhole, M or W fenders. FenderTec produces this type of fender by means of a winding process up to a diameter of 1000 mm. If required they can be provided with tapered ends for better attachment to the ship and with grooves for additional attachment with chains or nylon straps.

Types

FenderTec produces cylindrical bow & stern fenders from a very durable rubber. Depending on the diameter of the fender unit lengths of up to 10 metres can be provided. Connection plugs can be used to make longer lengths. The maximum diameter of this type of fender is 1000 mm. Most cylindrical bow & stern fenders can be customised according to customer specifications.

Processing

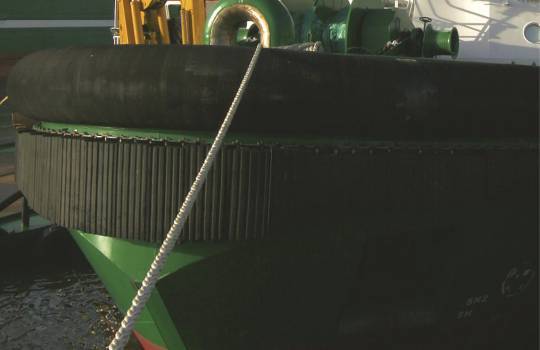

Cylindrical bow & stern fenders with a diameter up to 500 mm are attached to a vessel by a chain through the round chamber. Fenders with a larger diameter are provided with grooves in the circumference of the fender for additional mounting options with the aid of nylon straps or cables.

Applications

Cylindrical bow & stern fenders can be used for the following purposes, depending on the customer:

  • tugboats
  • workboats
  • icebreakers
  • supply boats
